Verilog: D Flip Flop Behavioral Modelling using If Else Statement with Testbench Code

-

Verilog Code for D Flip Flop Behavioral Modelling using If Else with Testbench Code

module D_FF(
    input D,clock,reset,
    output q, qb
    );
reg q, qb;

always @ (posedge (clock))
    begin
        if (reset)
               q <= 0;
        else
               q <= D;

    end
endmodule
//Testbench code for D Flip Flop Behavioral Modelling using If Else Statement
initial begin
// Initialize Inputs
D = 0;
// Wait 100 ns for global reset to finish
#100;
// Add stimulus here
#100; D=1;
#100; D=0;
end
initial begin
#100
$monitor(“clock=%b, reset=%b, D=%b, q=%b, qb=%b”,
clock, reset, D, q, qb);
end
endmodule

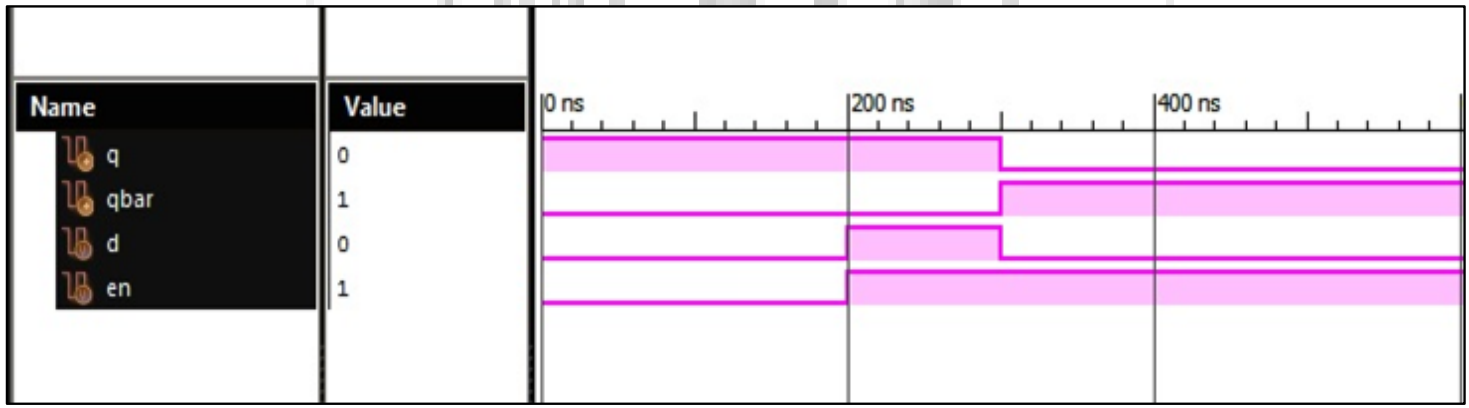

Xillinx Output:

Verilog Code for D Flip Flop Behavioral Modelling using If Else with Testbench Code
D Flip Flop Verilog Code Xilinx Response

Comments
